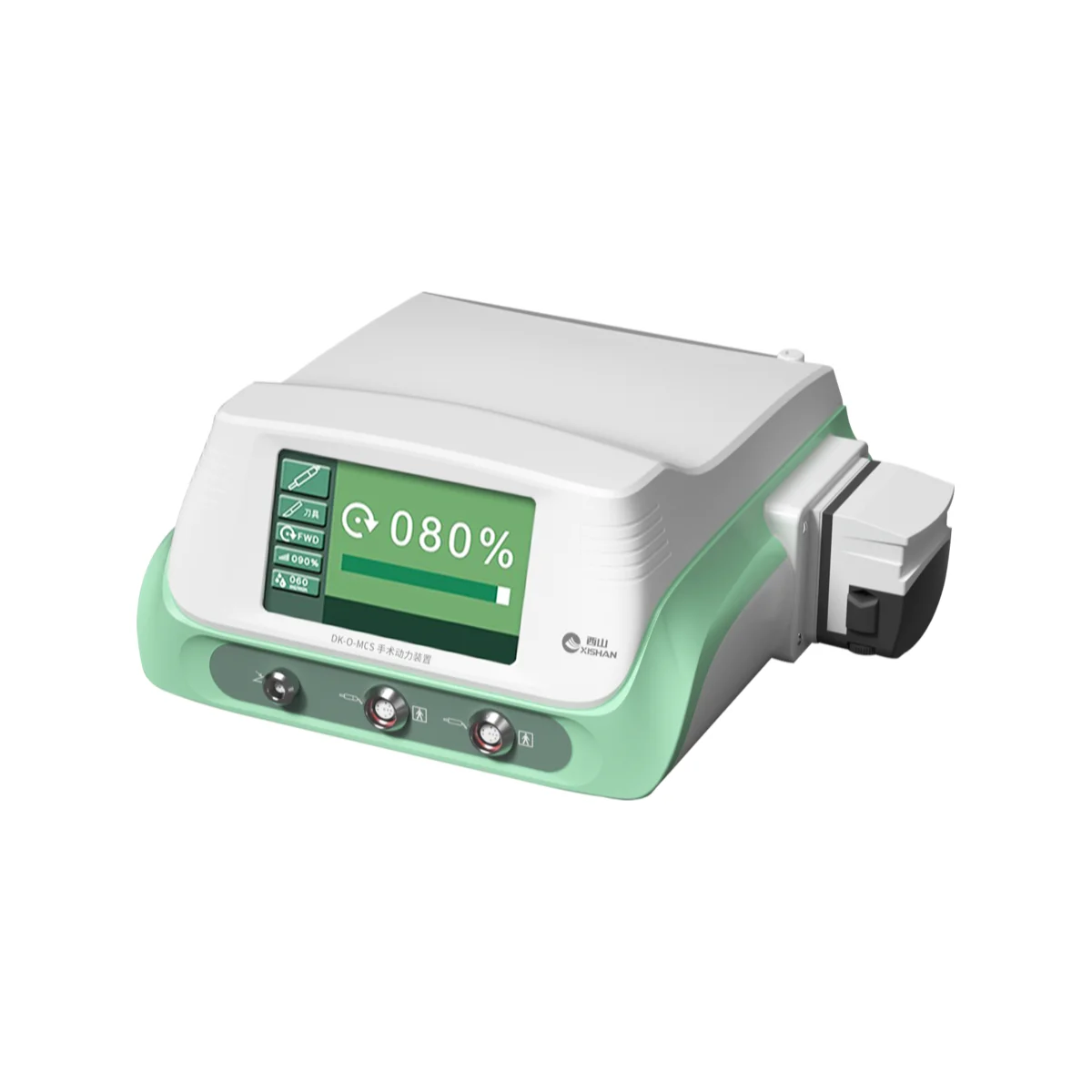

The DK-O-MCS Sports Medicine Power Console is a dedicated arthroscopic surgical power platform engineered for minimally invasive joint surgery, including knee, shoulder, hip, and small joint procedures. Driven by high-torque brushless DC motors, it delivers stable, dynamic power for both high-efficiency joint shaver handpieces and precision bone preparation burs.
Engineered for rapid soft tissue resection and smooth bone contouring, the DK-O-MCS maintains constant cutting efficiency under dense cartilage and fibrous tissue loads, featuring multi-directional blade rotation, rapid suction clearing, and low vibration to minimize surgeon fatigue.
Core System Features
Dynamic Joint Shaving Performance
Optimized torque algorithms supporting oscillating, forward, and reverse modes for efficient meniscus trimming, synovium debridement, and cartilage resection.
Smart Console UI & Auto-Recognition
Digital touch interface automatically identifies connected shaver handpieces and blade models, adjusting default speed and torque limits instantly.
Non-Clogging Suction Integration
Direct negative-pressure suction channel with an ergonomic flow control lever on the handpiece to prevent surgical debris accumulation.
Dual Control Flexibility
Intraoperative control via ergonomic 3-button handpiece switches (speed, mode, on/off) or a waterproof multi-function foot switch pedal.
Compatible Handpiece Modules
1. Arthroscopy Shaver Handpiece (PSB2 Series)
- Shaver Mode (Oscillating): 2,000 – 6,000 RPM for aggressive soft tissue debridement and meniscus resection without tissue wrapping.
- Bur Mode (Continuous): 6,000 – 12,000 RPM for subacromial decompression, notchplasty, and bone bed preparation.
- Multi-Directional Blade Indexing: Shaver blades can be locked in multiple rotational orientations to suit varied arthroscopic portals.
- Sterilization: Fully sealed and autoclavable at 134°C.
2. High-Speed Micro Drill & Bur Handpieces
- High-Speed Drilling: Up to 40,000 / 80,000 RPM for precise suture anchor pilot hole drilling and bone bed decortication.
- Thermal Safety: Smooth, chatter-free rotation preventing thermal necrosis in articular bone.
Consumable Compatibility
- Arthroscopic Shaver Blades (GPD Series): Full-radius resector, aggressive meniscus cutter, double-edged serrated blades in 3.6 mm, 4.0 mm, 5.0 mm, and 5.5 mm diameters (130 mm working length).
- Arthroscopy Burs: Oval, round, and barrel-shaped diamond/carbide burs for acromioplasty, femoroacetabular impingement (FAI), and intercondylar notchplasty.
- Tubing & Accessories: Single-use sterile suction tubing sets and inflow/outflow irrigation kits.
Technical Specifications
| Main Console Model | DK-O-MCS |
|---|---|
| Display Interface | Color Touch Screen / Digital UI with real-time speed & mode feedback |
| Shaver Oscillating Speed | 2,000 – 6,000 RPM (stepless adjustment) |
| Joint Bur Speed | 6,000 – 12,000 RPM (continuous forward/reverse) |
| High-Speed Bur Speed | Max. up to 40,000 / 80,000 RPM |
| Motor Technology | High-Torque Brushless DC Micromotor, Sealed Waterproof Construction |
| Suction Interface | Integrated negative-pressure suction port with handpiece regulation valve |
| Safety & Protection | Automatic blade recognition, motor stall cutoff, overload auto-protection |
| Sterilization Method | Handpieces, Attachments & Cables: Steam Autoclave at 134°C |
Standard System Package
- 1 × DK-O-MCS Sports Medicine Power Console Mainframe
- 1 × Multi-Function Waterproof Foot Switch Pedal
- 1 × Arthroscopy Shaver Handpiece (PSB2 Series with Suction Control)
- 1 × High-Speed Micro Drill / Bur Handpiece
- 1 × Suction Tubing Adapter & Bracket Kit
- 1 × Heavy-Duty Power Cord & Grounding Cable
- 1 × User Manual & Sterilization Guidelines
